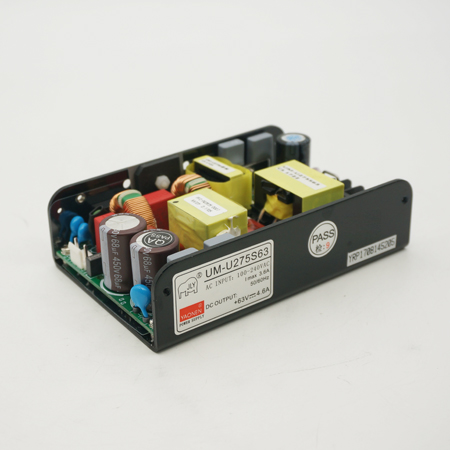

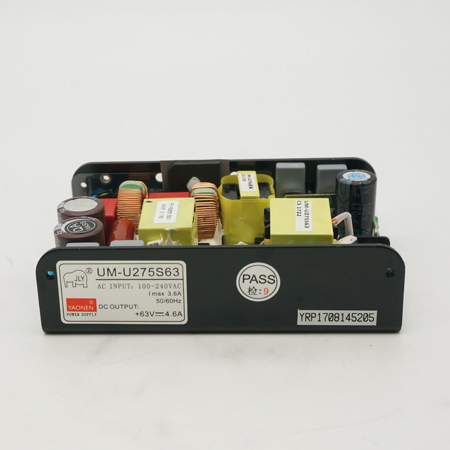

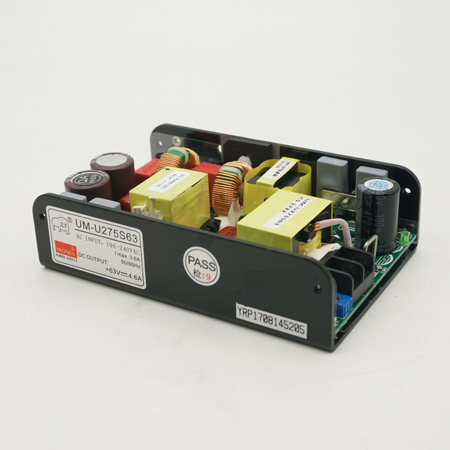

UM-U275S
UM-U275S
1. Built-in PEC function;
2. Soft switching technology;
3. Small volume, high reliability;
4. Acquire CE certification。
1. general purpose 100-240VAC input voltage;
2. built in active power factor correction;
3. when the full load of 230VAC, the PF value is greater than 0.95; when loaded with 115VAC, the PF value is greater than 0.99;
4. soft switching technology, when the load 230VAC, the efficiency is greater than 94%;
5. protection function: short circuit protection / over current protection / over voltage protection / over temperature protection;
6. small volume, substrate type, U type shell.
7. low energy consumption, high reliability and high efficiency;
8.200W below load, air convection cooling, 200W load above, forced ventilation cooling by fan with 40CFM air volume;
9. single output;
10.100% full load test;
11.Three year warranty.
