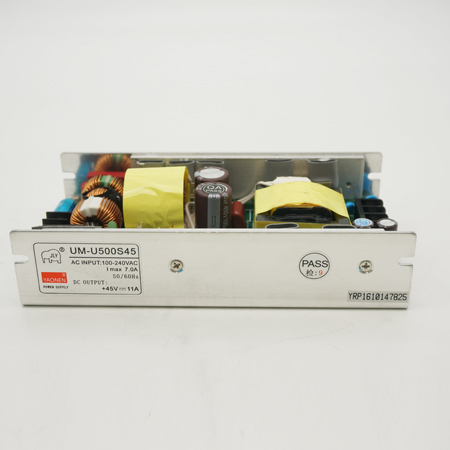

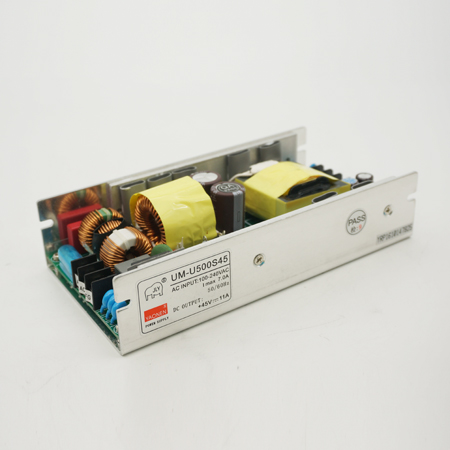

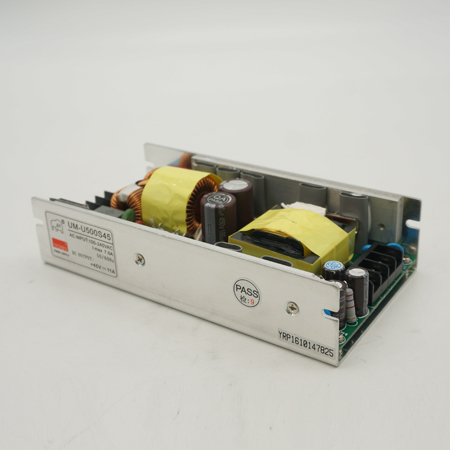

UM-U500S
![]()
UM-U500S
1. general purpose 100-240VAC input voltage;
2. Built in active power factor correction;
3, when loaded with 230VAC, the PF value is greater than 0.97; when loaded with 110VAC, the PF value is greater than 0.99;
4 . protection function: short circuit
1. general purpose 100-240VAC input voltage;
2. Built in active power factor correction;
3, when loaded with 230VAC, the PF value is greater than 0.97; when loaded with 110VAC, the PF value is greater than 0.99;
4 . protection function: short circuit protection / over current protection / over voltage protection / over temperature protection;
5, industrial volume, small volume, substrate type, U type shell;
6, low power consumption, high reliability and high efficiency; when the load is 230VAC, the efficiency is more than 93%;
7, 300W below load, air convection cooling, 300W load above, 40CFM fan ventilation forced ventilation cooling;
8 .single circuit voltage output, with 400V DC output;
9 and 100% full load test;
10.Three year warranty.
